ATEK has announced the availability of its new Datakey Mini-Bar series
ATEK Access Technologies has announced the availability of its new Datakey Mini-Bar series, the world’s smallest Crypto Ignition Key (CIK) portable memory system.
A Crypto Ignition Key is a portable memory device used as a credential to enable or disable cryptographic equipment. Since producing its first CIK in 1986, Datakey portable memory products have continuously evolved to meet the changing needs of cryptographic systems. One of the most significant trends in these devices has been the ongoing reduction of size, weight, and power (SWaP). In 2009, Datakey introduced the Bar series, offering a compact CIK solution for tactical environments. Today, the new Mini-Bar form factor takes that innovation even further, being 60% smaller than the Bar series while still meeting the same MIL- STD-810 environmental specifications.

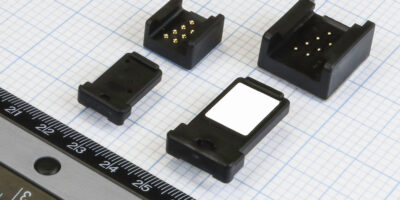

Measuring just 21 mm x 15 mm, the Mini-Bar memory token is only slightly larger than a microSD card yet remains easy to handle. Mini-Bar memory tokens are available with serial EEPROM in 16 Kbit and 256 Kbit capacities, using either SPI or I2C interfaces. Models featuring Microchip’s CryptoAuthenticationTM secure memory ICs are coming soon. Customised Mini-Bar tokens using customer-specified ICs will also be offered.
The unique design of Mini-Bar receptacles allows them to be integrated into the corner of a housing, thereby minimising the amount of volume required inside the enclosure while also minimising the front panel space needed. Mini-Bar receptacles are offered with two different internal interfacing options:
• The MBRHN Mini-Bar receptacle features an 8-pin header connector and measures 16.3 mm x 15.8 mm x 13.7 mm.
• The MBRFN Mini-Bar receptacle features seven flat targets and measures 16.3 mm x 15.8 mm x 9.1 mm and is designed for use with an FFC/FPC interface board.
Both receptacles are offered with or without an adhesive gasket and can achieve an IP67 seal when properly mounted.
