Cissoid’s modular SIC inverter platform available from Rhopoint

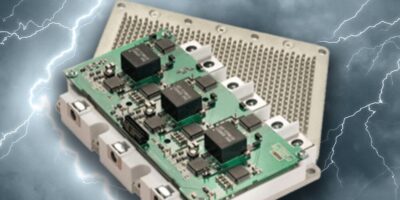

Rhopoint Components has announced the availability of the Cissoid CMT-PLA3SB12340A Silicon Carbide (SiC) MOSFET Intelligent Power Module.
Applications include power systems for Electric Vehicles such as cars, busses, trucks and heavy-duty industrial plant, E-Boats, E-Aviation and industrial motor control.
Cissoid power semiconductor solutions deliver multi-phase, high-current power switching modules, motor control systems and software, across a wide range of power requirements.
Key features include:
3-phase inverter with anti-parallel diodes
Drain-to-source Breakdown Voltage of 1200V.
Max Continuous Current of 340A/260A at Tc=25°C/90°C
Low On Resistance of 3.25 mΩ typical
Junction Temperature: -40°C to +175°C
The unique Cissoid Silicon Carbide (SiC) MOSFET Intelligent Power Module has an open-source design allowing developers to customise the module to meet their needs. Reference designs and bench-top or on-board packaging are available to shorten new product development lead-times. The SiC inverter platform is based on a suite of hardware and software products including a SiC Intelligent Power Module, an Inverter Control Module and Functionally Safe E-Motor Control Hardware & Software from Intel Automotive Solutions.
