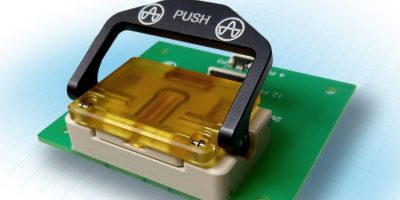

FPC/FFC test sockets can be produced to individual requirements
FPC/FFC test sockets can be manufactured and qualified by Yamaichi Electronics in its own production site. This, says the company, guarantees the fast implementation of all individual customer requirements. The high level of vertical integration enables top quality with short lead times.
The probe pins only touch the material at a tiny point and only apply enough pressure to make a secure connection, without deforming the material. The vertical placement of the pins causes no scratches, furrows or grooves and the device under test (DUT) leaves the test socket almost without trace, claims Yamaichi.
The demand for more contacts in less space requires a high degree of precision. Yamaichi Electronics specialises in high-precision test solutions and offers test sockets from a pitch of 0.3 mm. It uses PEEK and anodised aluminium for housings. The individually tested probe pins are made of a beryllium copper alloy coated with nickel and gold. For special requirements also pins with other surfaces can be used.
Yamaichi Electronics guarantees up to 50,000 mating cycles for each FPC/FFC test socket. The test sockets are adapted to the customer needs. Upon request, the correct PCB can be delivered, adds the company.
Yamaichi Electronics specialises in test and burn-in sockets, connectors and connection systems. The company manufactures components for demanding applications in various markets and applications, including semiconductor, industrial automation, automotive, data networking, measurement and test, medical, mobile computing and embedded computing.
