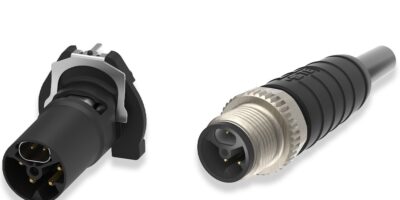

TE introduces latest hybrid connectors for industrial communication
TE Connectivity has announced a Single Pair Ethernet (SPE) hybrid connector in M12 format. This development helps enable users to connect systems and machines within factory floor networks.
TE’s latest SPE M12 hybrid connectors, which comply with the IEC 63171-7 standard, support the integration of power-demanding field devices into the network and transmit large amounts of data in real time to the control system or the cloud.
The compact SPE M12 hybrid connectors support the transmission of high-speed data and unprecedented current levels over a single cable. This makes this connection technology excellent for robotics systems and drives, as well as for future IIoT applications in automation technology. In particular, the trend toward miniaturisation is supported, as devices (eg. cobots, grippers, sensors and vision systems) can feature higher performance within the same M12 form factor and without increasing space requirements.
According to TE, existing hybrid connectors that meet IEC 61076-2-113 standard, deliver only 2 x 6 A and 100 Mbit/s, restricting high-power devices and fast data exchange. TE’s latest SPE M12 hybrid is an industrial connector that combines data and power transmission in a single interface. It supports high-speed data transmission at up to 1 Gbit/s, helps enabling real-time communication at data rates 10 times higher than in previous industrial applications. The 2 x8 A power supply supports the operation of power-demanding components up to approximately 1 kW.
TE has developed the connector for harsh environments and designed it to be highly robust with an IP67 protection rating. It supports interoperability between devices and manufacturers thanks to its standardised mating face. Its integrated design simplifies cabling, prevents cable clutter, and lowers installation costs.
Communication takes place via advanced Ethernet protocols, reducing the need for gateways and fieldbus couplers. Developers and designers of plants and systems can incorporate the standardised and future-proof SPE M12 interfaces into their designs, increasing planning reliability and reducing development costs.
