binder launches B23 connector for one cable automation
With the new B23 connector, binder presents a new generation of hybrid connectors for industrial automation. The series combines power supply and shielded data transmission in one compact connector and enables Ethernet transmission rates of up to 100 Mbit/s. As a result, the B23 creates the foundation for modern One Cable Automation concepts and addresses key market requirements – from reduced cabling effort and increasing data rates to the growing decentralisation of industrial systems.
In modern machines and systems, the demand for efficient, space-saving cabling solutions continues to rise. Hybrid connectors such as the new B23 make it possible to implement power supply and communication via a single interface. This significantly reduces cabling effort, shortens installation times and minimises potential sources of error.
The advantages of this technology are particularly evident in drive technology: servo motors and drive systems can be connected with just one cable, simplifying integration and creating a leaner system architecture.
As control functions are increasingly moved directly into the machine, the requirements placed on connectors in the field are also rising. Instead of centralised control cabinet solutions, decentralised systems are being used more frequently, requiring robust, pluggable connections with a high degree of protection.
The B23 connector meets precisely these requirements: it is suitable for both power supply and data transmission in decentralised automation concepts and supports modular machine architectures – for example in robotics or flexible manufacturing systems.
The B23 combines high power density with reliable data communication. The key features at a glance:
• One Cable Automation: power and data in one connector
• Power transmission: up to 28 A at up to 630 V
• Data transmission: shielded Ethernet / EtherCAT according to Cat5, up to 100 Mbit/s
• Fast installation: bayonet quick-locking system
• Easy assembly: screw clamp termination technology for field use
• Standardisation: IEC 61076-2-118 for manufacturer-independent compatibility
This makes the connector a future-proof interface for high-performance yet flexible automation solutions.
A particular advantage of the B23 is its simple handling in the field. Screw clamp technology enables fast assembly with minimal tool requirements and without special crimping tools. In addition, the bayonet locking system ensures a fast, secure connection and significantly reduces assembly times.
The hybrid connection technology particularly demonstrates its strengths in control concepts without control cabinets: greater flexibility, faster response times and reduced installation effort.
Product variety for different integration requirements

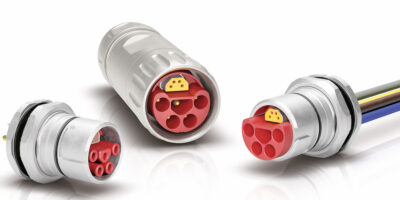

binder offers the B23 not only as a field-attachable version, but also as a panel mount connector for device installation. Versions with single-wire termination and THT contacts are available.
This means the series covers both field requirements and device integration requirements, enabling a continuous system solution from a single source.
