Dengrove provides Recom’s compact 2MOPP DC/DC modules

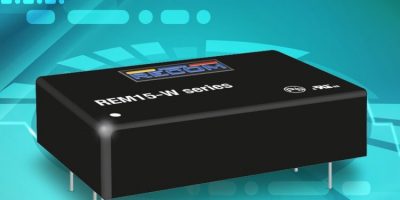

Medical-certified DC/DC modules from Recom have been added to the range available from Dengrove Electronic Components. The REM15-W, REM20-W and REM30-W deliver up to 30W for patient-connected applications, reports Dengrove.

The medical-certified DC/DC modules deliver high power from a small outline and meet safety requirements for 2MOPP (Means Of Patient Protection) at 250V AC.

The REM15-W, REM20-W and REM30-W are 15W, 20W and 30W modules that benefit from a wide input-voltage ratio of 4:1 and high conversion efficiency that allows operation in ambient temperatures from -40 to +105 degrees C cooled only by natural convection.

The modules are compact, with a footprint of just 40.6 x 25.4mm (1.6 x 1.0-inch) or 50.8 x 25.4mm (2.0 x 1.0-inch) for the REM30-W. Internal creepage/clearance is 8.0mm creepage/clearance. Reinforced isolation is 5kV to meet medical safety standards. They are certified to IEC 60601-1 3rd Edition and, with only 2.0 microA leakage, are compatible with all classes of patient contact up to CF for direct heart contact.

The small size of the modules means they can easily be integrated in space-constrained situations. There is a choice of output voltage options. Modules are available with a single 5.0, 12, 15 or 24V output, or dual outputs of ±5.0, ±12 or ±15V. Output power integrity is high, with tight voltage regulation, low output ripple, and zero-load operation. The outputs also feature short-circuit and overload protection. Single and dual-output variants are with nominal input voltage of 24V or 48V, giving a wide supply range of 9.0 to 36V or 18 to 75V.

REM15-W, REM20-W and REM30-W modules are certified to CB, IEC/EN and ANSI/AAMI standards including 62368-1, UL and CE marked. The modules are supplied with a manufacturer’s five-year warranty.

Dengrove Electronic Components was established over 30 years ago to provide a reliable and competitive component distribution service to a wide range of industry sectors.  The independent franchised broadline distributor has ISO9001 certification and boasts companies including Recom, Temas and Yuasa on its linecard.  The company also offers component sourcing and kitting services and a high level of service which is tailormade to customers’ individual requirements.
