Industrial ATX motherboard boosts memory capacity for transport and factory

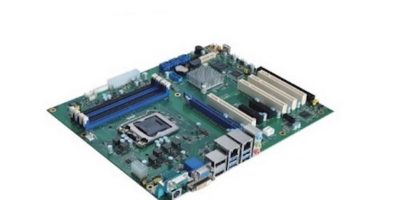

Powered by eighth generation Intel Core processor, the IMB523 is the latest industrial ATX motherboard from Axiomtek. The IMB523 is powered by the LGA1151 socket, eighth generation Intel Core i7/i5/i3, Pentium and Celeron processors, with the Intel Q370 chipset. The ATX motherboard features four 288-pin DDR4-2666/2400 DIMMs with a memory capacity up to 64Gbytes to meet the needs of high-density computing

The IMB523 ATX motherboard comes with multiple I/O ports including four RS-232 ports, two RS-232/422/485 ports, two Gigabit LAN ports, six USB 3.1 ports, seven USB 2.0 ports, eight-channel digital I/O, one HD Codec audio, one SMBus, and one PS/2 keyboard/mouse. There are six SATA-600 ports with software RAID 0/1/5/10 to enhance reliability, stability and data recovery capability. One PCI Express Mini Card slot and one SIM card slot are available for 3G/4G, GPS, wi-fi and Bluetooth connections.

The IMB523 is expandable with one PCIe x16 slot, two PCIe x4 slots, four PCI slots and one PCI Express Mini Card slot. It also adopts Intel HD Graphics which provides rapid video acceleration and supports triple-view capability through the DisplayPort, DVI-D, HDMI, VGA with a resolution of up to 4K2K. There are two USB 3.1 Gen 2 and four USB 3.1 Gen 1 ports for fast data transfer, making the IMB523 suitable for use in various applications, such as multimedia centres, medical equipment, transportation infrastructure and factory automation, says Axiomtek.

The motherboard is capable of withstanding a wide operating temperature range of 0 to +60 degrees C, and also supports watchdog timer, hardware monitoring functions and Trusted Platform Module 2.0 (TPM 2.0).

http://www.axiomtek.com
