Remote modules support I/O expansion of channels with a mix of signal types

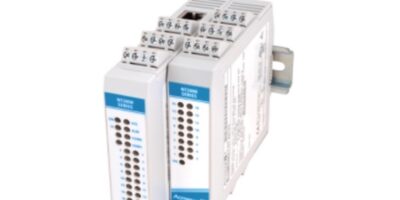

The BusWorks NT series remote I/O modules from Acromag provide an Ethernet interface for analogue, discrete and temperature signals.
NTE Ethernet I/O models have dual RJ45 ports and a webserver with Modbus TCP/IP communication to monitor or control the internal I/O channels. An integrated DIN rail bus allows connection of up to three NTX expansion I/O modules. Each I/O module adds up to 16 input or output signals allowing a mix of voltage, current, temperature, TTL and relay control signals networked on one IP address.
The design requires only 25mm of DIN rail per module. Ethernet I/O modules distribute 9-32V DC power along the DIN rail bus to expansion modules. Hazardous location approvals, high noise immunity and -40 to 70 degrees C operation suit this I/O for use in harsh environments.
The NT2000 series offers a variety of I/O signal processing options. Nine I/O configurations are available as either NTE Ethernet I/O or NTX expansion I/O models. Analogue I/O models feature eight differential or 16 single-ended inputs for monitoring current or voltage signals. Discrete I/O models provide 16 tandem input/output channels with either active high/low input and sinking/sourcing output. A six-channel mechanical relay output model is also available.
For temperature monitoring, a thermocouple input model supports many sensor types and also millivolt ranges. Acromag says that more models will be released over the coming months for additional I/O functions.
Currently, the NTE I/O modules support only Modbus TCP/IP communication, but will soon include Ethernet/IP and Profinet protocols. Each module will support all three protocols which is selectable using any web browser to configure the network settings and I/O operation. The modules typically function as a network slave, but also offer Acromag’s i2o peer-to-peer communication technology to transfer data between modules directly without a host or master inbetween. Multicast capability is included.
