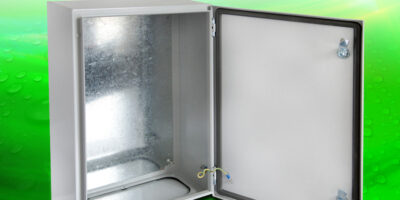

Solid door steel enclosures guard against water and dust

Designed to provide high-quality, secure, protection for exterior electronic and electrical installations, the Beds Series of lockable, solid door steel enclosures from BCL Enclosures offer IP66-rated protection against water and dust ingress as well as meeting IK10 specifications against impact.

The enclosure housings are made from galvanised steel, powder-coated in grey RAL7035 and BCL states that they are guaranteed against corrosion for three years.  The enclosure back plates are manufactured from 2mm galvanised steel, with perforated steel back plates available as an option.

Spacers for the back plate are also included in the kit.  All studs are rust-proof stainless steel. A pre-wired and fitted earth strap between the door and the housing helps cut down on installation time.

These steel enclosures come complete with lock and key and galvanised steel wall-mounting brackets. As the Beds Series is primarily designed with exterior installation in mind, the gland-plate modules for cable entry (which can be supplied as top or base mounted) are they come with IP66-rated sealing gaskets for total protection against dust and water jets or waves.

Beds Series enclosures suit HVAC installations and lighting and exterior consumer units where protection against the elements and tampering are important considerations.  The door enclosures are supplied as an everything included kit for quick and easy installation.

This range is available in 21 different sizes, from 250mm (height) x 200mm (width) x 130mm (depth) to 1250mm (height) x 600mm (width) x 300mm (depth). They comply with IEC 60529 and are CE certified.

BCL Enclosures is a UK manufacturer of standard and custom plastic enclosures moulded in ABS, polycarbonate and other plastic materials designed to provide solutions for a variety of applications across multiple markets.

The company specialises in unusual or challenging product housing requirements from single boxes to high volume production.
